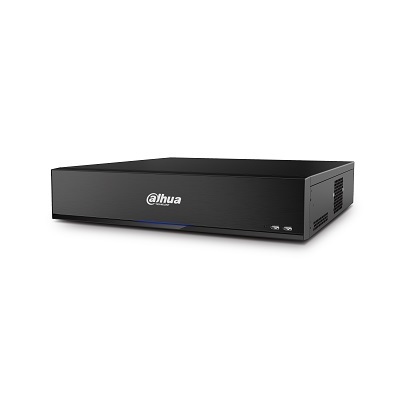

Dahua Technology XVR8816S-4KL-I 16 Channel Penta-brid 4K 2U Digital Video Recorder
Technical Specification
Features:
- Make: Dahua Technology
- Model code: XVR8816S-4KL-I
- Series: AI series
- Channels: 16 channels
- Hybrid IP inputs: 4
Additional info:
H.265+/H.265 dual-stream video compression Supports HDCVI/AHD/TVI/CVBS/IP video inputs Supports 64 channels of IPC access, each channel up to 12MP input; Max 256Mbps incoming bandwidth HDMI1 4K@60fps output Up to 16 channel perimeter protection Up to 4 channel video stream face recognition Up to 24 face pictures /sec processing
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | XVR8816S-4KL-I |
| Series | AI series |
|
Channels: 16 channels Hybrid IP inputs: 4 Inbuilt Multiplexer: 1 Multiplexer Type: Triplex Alarm I/O: 16 in, 6 out Storage Capacity GB: 10, 240 GB storage Image per second (IPS): 25 ~ 60 fps fps storage rate Compression Type: H.265+, H.265, H.264+, H.264 Resolution: 3840 x 2160 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Type of Multiplexer Functions: Simulatneous Live, Recording, Playback, Archive IP Storage rate (fps): 25 ~ 60 Network Type: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
| Physical Specifications |
Dimensions mm: 440 x 455 x 95 Weight kg: 6.9 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 20 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
