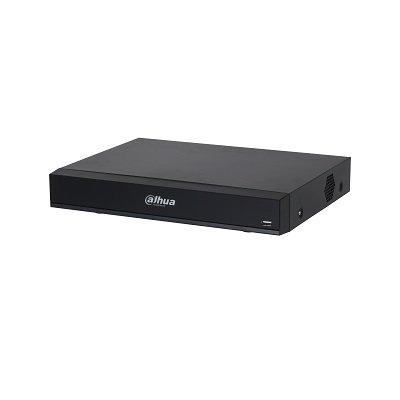

Dahua Technology XVR7108HE-4K-I2 8 Channel Penta-brid 4K Mini 1U 1HDD WizSense DVR
Technical Specification
Features:
- Make: Dahua Technology
- Model code: XVR7108HE-4K-I2
- Series: I2 Series
- Channels: 8 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
H.265+/H.265 dual-stream video compression Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth Perimeter Protection and SMD Plus Up to 2 channels video stream (analog channel ) human face recognition IoT & POS functionalities
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | XVR7108HE-4K-I2 |
| Series | I2 Series |
|
Channels: 8 channels Recording Mode: Real Time / Timelapse / Event recording Hybrid IP inputs: 16 Inbuilt Multiplexer: 1 Storage Capacity GB: 10TB GB storage Compression Type: AI Coding, H.265+, H.265, H.264+, H.264 Resolution: 6MP resolution Signal Mode: PAL / NTSC External Storage: USB Audio Recording and Properties: G.711A, G.711U, PCM Recording System: HDD Type of Multiplexer Functions: Recording, Playback IP Storage rate (fps): 25 ~ 60 Network Type: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search ( IP Ready: Hybrid |
|
| Physical Specifications |
Dimensions mm: 325 x 257 x 55 Weight kg: 1.4 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 15 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (+14 ~ +131F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
