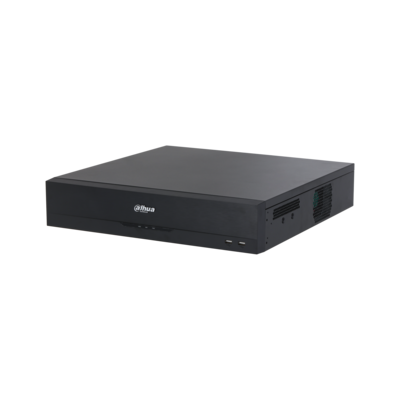

Dahua Technology XVR5816S-I2 16 Channel Penta-brid 5M-N/1080P 2U WizSense Digital Video Recorder
Technical Specification
Features:
- Make: Dahua Technology
- Model code: XVR5816S-I2
- Series: WizSense Series
- Channels: 16 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
H.265+/H.265 dual-stream video compression Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 24 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth Up to 2 channels video stream (analog channel) perimeter protection Up to 16 channels video stream (analog channel) SMD plus Up to 2 channels video stream (analog channel) human face recognition IoT & POS functionalities
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | XVR5816S-I2 |
| Series | WizSense Series |
|
Channels: 16 channels Recording Mode: Real Time / Timelapse / Event recording Hybrid IP inputs: 24 Inbuilt Multiplexer: 1 Alarm I/O: 16 in Storage Capacity GB: 10TB GB storage Image per second (IPS): 15 ~ 60 fps fps storage rate Compression Type: H.265+, H.265, H.264+, H.264 Resolution: 1920 x 1080 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Audio Recording and Properties: G.711A, G.711U, PCM Colour Type: colour IP Storage rate (fps): 15 ~ 60 Type of Multiplexer Functions: Recording, Playback Network Type: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) IP Ready: IP |
|
| Physical Specifications |
Dimensions mm: 440 x 463 x 95 Weight kg: 6.7 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 15 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (+14 ~ +131F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
