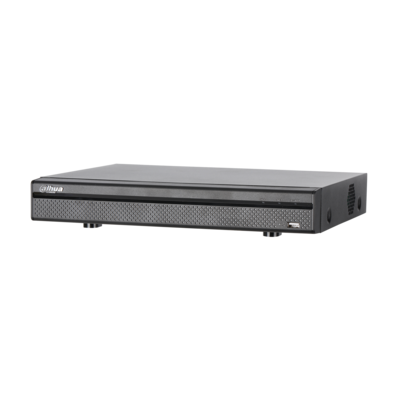

Dahua Technology XVR5108/16H-4KL-X 8/16 Channel Penta-brid 4K Mini 1U Digital Video Recorder
Technical Specification
Features:
- Make: Dahua Technology
- Model code: XVR5108/16H-4KL-X
- Series: Lite series
- Channels: 8/16 channels
- Recording Mode: Real Time / Timelapse / Event recording
Additional info:
H.265+/H.265 dual-stream video compression Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 12/24 channels IP camera inputs, each channel up to 8MP; Max 48/96Mbps Incoming Bandwidth Smart Search and Intelligent Video System
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | XVR5108/16H-4KL-X |
| Series | Lite series |
|
Channels: 8/16 channels Recording Mode: Real Time / Timelapse / Event recording Hybrid IP inputs: 16 Inbuilt Multiplexer: 1 Storage Capacity GB: 10TB GB storage Image per second (IPS): 25 ~ 60 fps fps storage rate Compression Type: H.265+, H.265, H.264+, H.264 Resolution: 3840 x 2160 resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Audio Recording and Properties: G.711A, G.711U, PCM Colour Type: colour Type of Multiplexer Functions: Simulatneous Live, Recording, Playback IP Storage rate (fps): 25 ~ 60 Network Type: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, U P n P, R T S P, U D P, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search IP Ready: Hybrid |
|
| Physical Specifications |
Dimensions mm: 483 x 281 x 56 Weight kg: 1.2 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 10 ~ 20 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (+14 ~ +131F) Operating Humidity %: 10 ~ 90 |
| Additional info |
|
| Download PDF version | |
