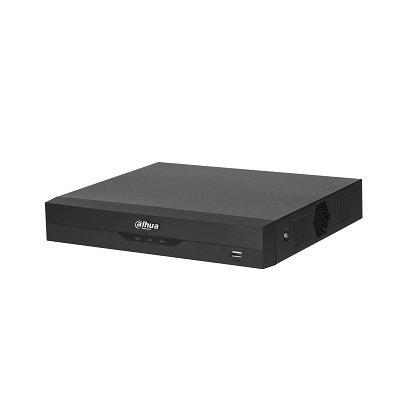

Dahua Technology XVR5104HS-I3 4 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense
Technical Specification
Features:
- Make: Dahua Technology
- Model code: XVR5104HS-I3
- Series: WizSense Series
- Channels: 4 channels
- Hybrid IP inputs: 6
Additional info:
H.265+/H.265 dual-stream video compression Supports Full-channel AI-Coding Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth Up to 1 channel video stream ( analog channel ) Perimeter Protection
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | XVR5104HS-I3 |
| Series | WizSense Series |
|
Channels: 4 channels Hybrid IP inputs: 6 Inbuilt Multiplexer: 1 Storage Capacity GB: 6TB GB storage Compression Type: AI Coding, H.265+, H.265, H.264+, H.264 Resolution: 6MP resolution Signal Mode: PAL / NTSC External Storage: USB Recording System: HDD Audio Recording and Properties: G.711A, G.711U, PCM Type of Multiplexer Functions: Recording, Playback IP Storage rate (fps): 10 ~ 30 Network Type: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search ( |
|
| Physical Specifications |
Dimensions mm: 260 x 238 x 48 Weight kg: 0.84 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +45 C (14 ~ 113 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
