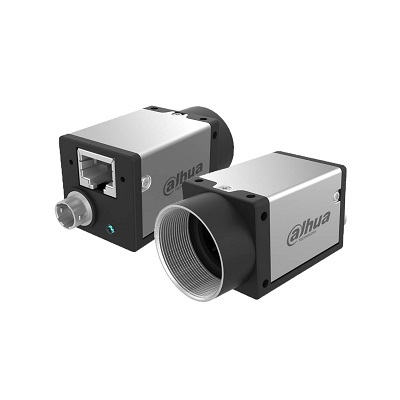

Dahua Technology MV-A7A21MG400E GigE 7000 Series Area Scan Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: MV-A7A21MG400E
- Resolution TVL: 12MP
- Digital (DSP): 1
- Lens Mount: C mount
Additional info:
1Gbps Ethernet interface , max 100m transmission 128MB on-board frame buffer Support multiple image data formats Conform to CE, FCC, UL and RoHS certifications Software trigger/Hardware trigger/Free run mode Compatible with GigE Vision V2.0 protocol and GenICam standard
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | MV-A7A21MG400E |
|
Resolution TVL: 12MP Digital (DSP): 1 Lens Mount: C mount Picture Elements HxV: 4096 x 3072 S/ N (Signal/ Noise) Ratio dB: >38 |
|
| Electrical Specifications |
Voltage: 6 ~ 26 V DC Power Consumption: 3.2 W |
| Physical Specifications |
Dimension mm: 29 x 29 x 42 Weight g: 88 |
| Environmental Specifications | Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) |
| Additional info |
|
