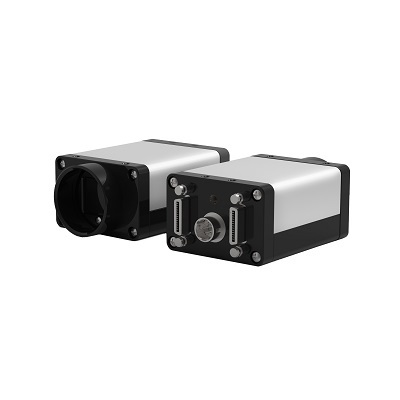

Dahua Technology MV-A7300MK200E CameraLink interface
Technical Specification
Features:
- Make: Dahua Technology
- Model code: MV-A7300MK200E
- Resolution TVL: 3MP
- Digital (DSP): 1
- Lens Mount: C mount
Additional info:
CameraLink interface, support Base/Medium/Full/Deca mode Support Software trigger/Hardware trigger/Free run mode Support multiple image data format output, ROI, mirroring, etc Conform to CameraLink V2.0 protocol and GenICam standard Conform to GenCP V1.1 Standard Communication Protocol Support for PoCL CE,FCC,UL,RoHS certification
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | MV-A7300MK200E |
|
Resolution TVL: 3MP Digital (DSP): 1 Lens Mount: C mount Picture Elements HxV: 2048 x 1536 S/ N (Signal/ Noise) Ratio dB: >38 |
|
| Electrical Specifications |
Voltage: 6 ~ 26 V DC Power Consumption: 3.4 W |
| Physical Specifications |
Dimension mm: 29 x 44 x 58 Weight g: 100 |
| Environmental Specifications | Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) |
| Additional info |
|
