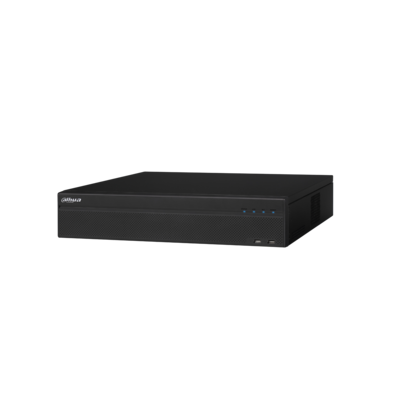

Dahua Technology HCVR8808/16S-S3 8/16 Channel 1080P 2U Digital Video Recorder
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HCVR8808/16S-S3
- Series: Ultra series
- Channels: 64 channels
- Hybrid IP inputs: 16
Additional info:
Embedded processor H.264+/H.264 video compression Support HDCVI/AHD/CVBS video inputs Max 64 channels IP camera inputs, each channel up to 12MP Max 256Mbps Incoming Bandwidth Smart Search and Intelligent Video System
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HCVR8808/16S-S3 |
| Series | Ultra series |
|
Channels: 64 channels Hybrid IP inputs: 16 Recording Mode: Real Time / Timelapse / Event recording Inbuilt Multiplexer: 1 Alarm I/O: 8/16 Storage Capacity GB: 8TB GB storage Image per second (IPS): 25 ~ 30 fps fps storage rate Compression Type: H.264+, H.264 Resolution: 1920 x 1080 resolution External Storage: USB Recording System: HDD Colour Type: colour Type of Multiplexer Functions: Simulatneous Live, Recording, Playback IP Storage rate (fps): 25 ~ 30 Network Type: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc. IP Ready: IP |
|
| Physical Specifications |
Dimensions mm: 440 x 460 x 89 Weight kg: 6.5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 40 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (+14 ~ +131F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
