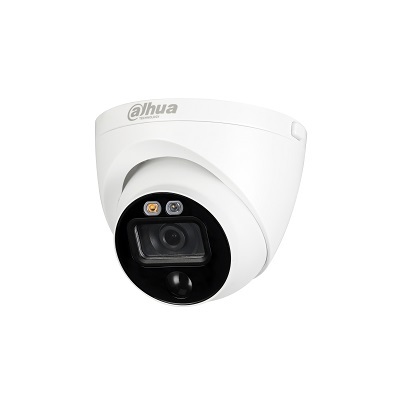

Dahua Technology HAC-ME1200E-LED 2MP HDCVI Active Deterrence Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-ME1200E-LED
- Series: PIR Series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Max 30fps@1080P HD and SD output switchable 2.8mm/3.6mm fixed lens 10m/110°detecting range/angle Max. IR length 20m, Smart IR IP67, DC12V
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-ME1200E-LED |
| Series | PIR Series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 2MP HD: 1 Digital (DSP): 1 Auto Iris: 1 Direct Drive: 1 Sensitivity lux: 0 ~ 0.02 Motion Activated: 1 High Speed: 1 Focal Length mm: 2.8 ~ 3.6 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/25 ~ 1/100,000s S/ N (Signal/ Noise) Ratio dB: >65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4.3 W |
| Physical Specifications |
Dimension mm: 110 x 96 Weight g: 280 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (+14 ~ +122 F) Protection: IP67 Operating Humidity %: 0 ~ 95 |
| Additional info |
|
