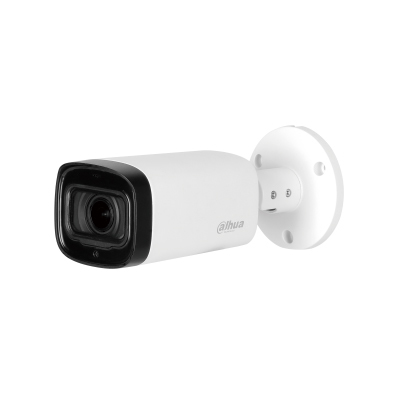

Dahua Technology HAC-HFW1400R-Z-IRE6-POC 4MP HDCVI POC IR Bullet Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HFW1400R-Z-IRE6-POC
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 4MP
Additional info:
Max 30fps@4MP HD and SD output switchable 2.7-12mm Motorized lens Max. IR length 60m, Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HFW1400R-Z-IRE6-POC |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 4MP Digital (DSP): 1 Specialist Types: Infrared Sensitivity lux: 0 ~ 0.03 Focal Length mm: 2.7 ~ 12 Wide Dynamic Range: 1 Picture Elements HxV: 2560 x 1440 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch) |
|
| Electrical Specifications |
Voltage: 12 V DC / PoC Power Consumption: 7.1W |
| Physical Specifications |
Dimension mm: 210 x 90 x 90 Weight g: 570 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
