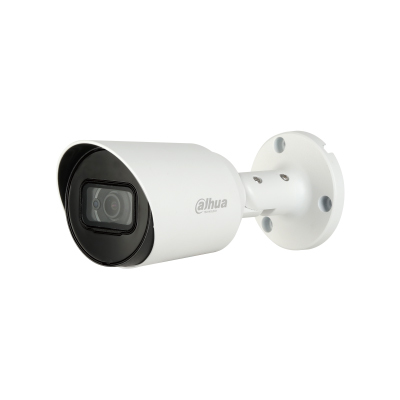

Dahua Technology HAC-HFW1230T-POC 2MP Starlight HDCVI POC IR Bullet Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HFW1230T-POC
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 2MP
Additional info:
Max. 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HFW1230T-POC |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 2MP Digital (DSP): 1 Specialist Types: Infrared Sensitivity lux: 0 ~ 0.005 Focal Length mm: 3.6 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25~1/100000s , NTSC: 1/30~1/100000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch) |
|
| Electrical Specifications |
Voltage: 12 V DC / PoC Power Consumption: 3.7W |
| Physical Specifications |
Dimension mm: 165 x 70 x 72 Weight g: 380 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 90 |
| Additional info |
|
