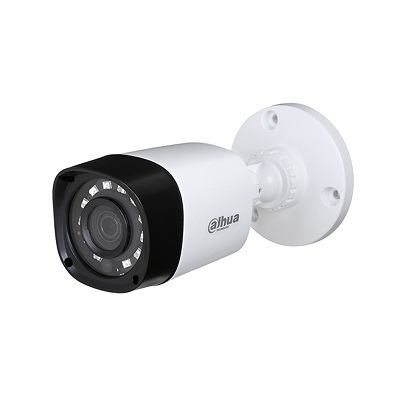

Dahua Technology HAC-HFW1220R 2MP Value Starlight HDCVI IR Bullet Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HFW1220R
- Series: Lite series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Value Starlight Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 20m, Smart IR IP67, DC12V
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HFW1220R |
| Series | Lite series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 2MP HD: 1 Digital (DSP): 1 Sensitivity lux: 0 ~ 0.008 Direct Drive: 1 Focal Length mm: 3.6 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/25(1/30) ~ 1/50,000s S/ N (Signal/ Noise) Ratio dB: 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.5 W |
| Physical Specifications |
Dimension mm: 154 x 70 x 70 Weight g: 130 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: 0 ~ 95 |
| Additional info |
|
