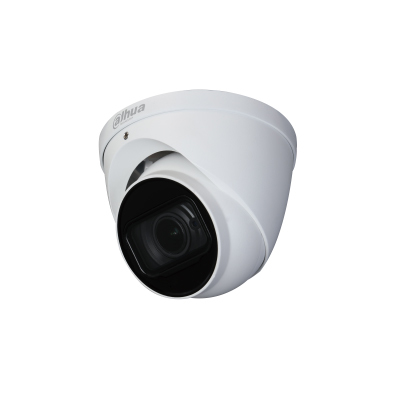

Dahua Technology HAC-HDW2402T-Z-A-DP 4MP Starlight+ HDCVI IR Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDW2402T-Z-A-DP
- Chip Inch Size ": 1/2 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 4MP
Additional info:
Starlight+, 120dB true WDR, 3DNR Max. 30fps@4MP HD/SD output switchable Audio in interface, built-in mic 3.7-11mm motorized lens Max. IR length 60m, Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HDW2402T-Z-A-DP |
|
Chip Inch Size ": 1/2 inch Colour Type: Colour / Monochrome Resolution TVL: 4MP Digital (DSP): 1 Specialist Types: Infrared Sensitivity lux: 0 ~ 0.002 Focal Length mm: 3.7 ~ 11 Wide Dynamic Range: 1 Picture Elements HxV: 2560 x 1440 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/25s~1/100,000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output (DIP switch) |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 10.3W |
| Physical Specifications |
Dimension mm: 122 x 107 Weight g: 630 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 90 |
| Additional info |
|
| Download PDF version | |
