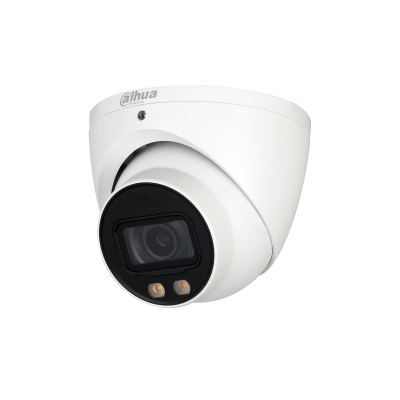

Dahua Technology HAC-HDW2249T-A-LED 2MP Full-colour Starlight HDCVI Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDW2249T-A-LED
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
- Resolution TVL: 2MP
Additional info:
120dB true WDR, 3DNR 131ft(40m) LED distance Max. 30fps@1080P HD/SD output switchable Audio in interface, built-in mic
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HDW2249T-A-LED |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 2MP Digital (DSP): 1 Sensitivity lux: 0 ~ 0.001 Focal Length mm: 3.6 Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/4s~1/100,000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output / CVBS video output (DIP switch) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 6.6W |
| Physical Specifications |
Dimension mm: 106 x 99 Weight g: 480 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 90 |
| Additional info |
|
