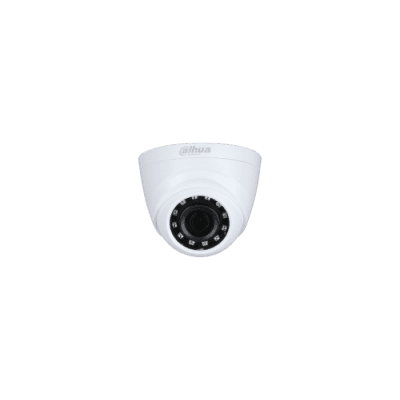

Dahua Technology HAC-HDW1221R 2MP HDCVI IR Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDW1221R
- Colour Type: Colour / Monochrome
- Resolution TVL: 2MP
- Sensitivity lux: 0.008
Additional info:
Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 30m, Smart IR 130db true WDR DC12V
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HDW1221R |
|
Colour Type: Colour / Monochrome Resolution TVL: 2MP Sensitivity lux: 0.008 Focal Length mm: 2.8 mm; 3.6 mm; 6 mm Wide Dynamic Range: 1 Picture Elements HxV: 1920 x 1080 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.1W |
| Physical Specifications |
Dimension mm: 154.3 x 69.8 x 69.8 Weight g: 130 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: < 95 |
| Additional info |
|
