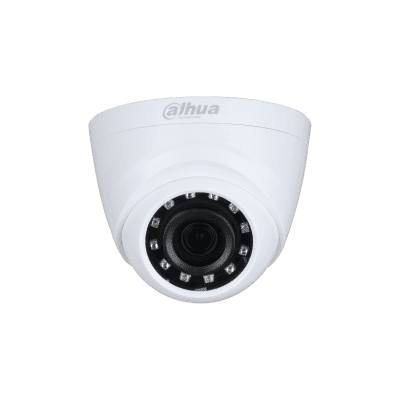

Dahua Technology HAC-HDW1200R 2MP HDCVI IR Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDW1200R
- Colour Type: Colour / Monochrome
- Resolution TVL: 2MP
- Specialist Types: Infrared
Additional info:
Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 20m, Smart IR DC12V
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-HDW1200R |
|
Colour Type: Colour / Monochrome Resolution TVL: 2MP Specialist Types: Infrared Sensitivity lux: 0.02Lux/F1.9, 30IRE, 0Lux IR on Focal Length mm: 2.8 mm; 3.6 mm Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25s–1/100000s / NTSC: 1/30s–1/100000s Signal Mode: PAL, NTSC Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
| Electrical Specifications |
Voltage: 12 Power Consumption: Max 3.1W |
| Physical Specifications |
Dimension mm: φ85.4 x 70.2 Weight g: 130 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP50 Operating Humidity %: < 95 |
