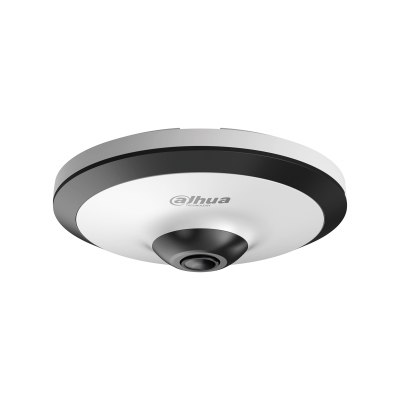

Dahua Technology HAC-EW2501 5MP HDCVI IR-Fisheye Camer
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-EW2501
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 5MP
Additional info:
Panoramic fisheye lens Max. 20fps@5MP Built-in Mic 120db true WDR, Starlight, 2D&3D NR Max. IR length 10m, Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | HAC-EW2501 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 5MP Digital (DSP): 1 Specialist Types: Infrared Sensitivity lux: 0 ~ 0.005 Focal Length mm: 1.4 Wide Dynamic Range: 1 Picture Elements HxV: 2592 x 1944 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/4s~1/100,000s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1-channel BNC high definition video output |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 7.3W |
| Physical Specifications |
Dimension mm: 126 x 41 Weight g: 240 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 |
| Additional info |
|
