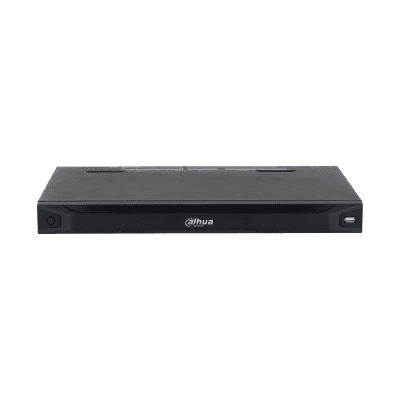

Dahua FSU6808U Environment Surveillance Server

Product Profile

Environment Surveillance Server combines networking, video monitoring and dynamic environmental monitoring to provide you with an all-in-one video monitoring solution. Based on the Internet of Things networking, it has multiple innovative technologies integrated into its system such as high-definition audio and video decoding, environmental perception and data acquisition, and component A interface access.

The server supports many functions such as analog input acquisition with current/voltage conversion, Modbus bus connection, signal acquisition, warning, alarm generation from network sensors, linkage management, high-definition video access, two-way audio, and information overlay. Combined with a switching power supply, UPS, access control devices, smart meters, and environmental data, this device becomes a comprehensive surveillance solution for plants, central machine stations, smart substations, and IDC data centers.

Read more

Technical Specification

Make Dahua Technology
Manufacturer Dahua Technology Ltd
Category IP Cameras products
Model code FSU6808U
Video Inputs: 8 channels
Audio Input: 1
Alarm Input: 1
Compression Type: H.264/H.265/Smart H.265/Smart H.264
Network Protocols: PPTP, L2TP, DHCP, UPnP, NTP and other network protocols
Interface: RJ–45 10/100 M self-adaptive Ethernet
Physical Specifications Dimensions mm: 440 x 312 x 42
Weight g: 3300
Electrical Specifications Power Consumption: 60 W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ +131 F)
Operating Humidity %: 10 ~ 90
Additional info
  • 16 channels of wired zone alarm input and NO/NC detector connection.
  • 8 channels of repeater output and forced on/off and auto control.
  • 8 channels of local analog input (4–20 mA, 0–5 V); FS accuracy is within 0.5%.
  • 8-channel RS-485 data communication port. Alpha channel is supported with a sending/receiving speed of 300 bytes each time.
  • Supports 8-ch 1080p or 16-ch 720p digital video connection, and the video overlay function.
  • Data and video uploading through TCP/IP.
  • SMS alarm notifications. Up to 5 phone numbers can be set.
  • Video overlay: Up to 8 lines can be added with 32 English letters in each line. Each type of data is displayed in a different color. Remote video overlay supports up to 5 lines with 32 English letters per line, and controls IPC OSD color. You can also watch the live view, play back videos, overlay information on snapshots, and switch between 3 OSD types on the web client.
  • Supports the alarm filtering function. Filter strategy is customizable to reduce pressure on maintenance.
  • Stores up to 50,000 logs, saving logs for alarm events, telemetering data, operation logs, and data/time.
  • Local GUI operation.
  • High-standard hardware protection technology with surge protection of up to 10 kV, and electrostatic protection that supports up to 8 kV contact discharge, and up to 8 kV of air discharge.
