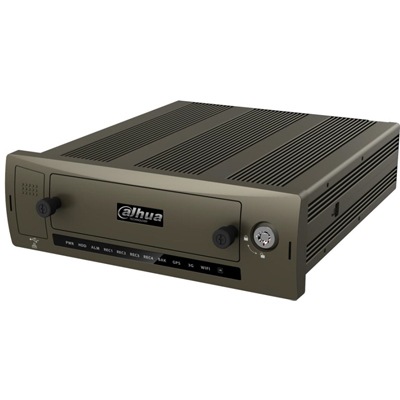

Dahua Technology DHI-MCVR5104 four-channel Mobile HDCVI DVR
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DHI-MCVR5104
- Channels: 4 channels
- Inbuilt Multiplexer: 1
- Alarm I/O: 7 in, 2 out
Additional info:
Supports HDCVI/Analog Video Input Dual-stream Recording H.264 Video Compression Two-channel 1080p and Two-channel 720p Real-time Recording Simultaneous VGA and TV Video Output Channels Aviation Connectors for Increased Signal Stability Optional WiFi and GPS Modules Available Multiple Network Monitoring Applications: Web Views, CMS, DSS 5-year Warranty (for products sold through an authorized Dahua dealer)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DHI-MCVR5104 |
|
Channels: 4 channels Inbuilt Multiplexer: 1 Alarm I/O: 7 in, 2 out Image per second (IPS): 30 fps fps storage rate Compression Type: H.264, MJPEG Resolution: Analogue: NTSC (525 TVL) , HDCVI: 720p/1080p resolution Signal Mode: NTSC External Storage: USB Recording System: HDD |
|
| Physical Specifications |
Dimensions mm: 178 x 220 x 50 Weight kg: 2.1 |
| Electrical Specifications |
Voltage: 6 ~ 36 V Power Consumption: < 15 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 10 ~ 95 Protection: IK10 |
| Additional info |
|
