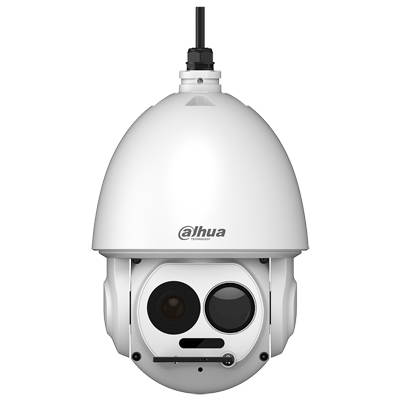

Dahua Technology DH-TPC-SD8420N-B 400 x 300 Thermal Hybrid Network PTZ
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-TPC-SD8420N-B
- Chip Inch Size: 1/2 inch
- Resolution: 400 x 300 resolution
- Digital (DSP): 1
Additional info:
Thermal Camera 400 x 300 VOx Uncooled Thermal Sensor Technology Athermalized Lens, Focus-free 25 mm or 50 mm Fixed Thermal Lens Options < 40 mK Thermal Sensitivity Visible-light Camera 1/1.9-in. 2MP Progressive-scan CMOS Sensor Powerful 30x Optical Zoom Lens Starlight+ Technology System Features Intelligent Video System with Fire Detection and Alarm Functionality Designed for Extreme Temperature Environments IP66 Ingress Protection Five-year Warranty (for products sold through an authorized Dahua dealer)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DH-TPC-SD8420N-B |
|
Chip Inch Size: 1/2 inch Resolution: 400 x 300 resolution Digital (DSP): 1 Specialist Type: Thermal Sensitivity Lux: 0 ~ 0.001 Auto Iris: 1 Direct Drive: 1 Focal Length mm: 6 ~ 180 (visible-light lens) / 25 ~ 50 (Thermal lens) Wide Dynamic Range: 1 Back Light Compensation: 1 White Balance: 1 Electronic Shutter Range: 1/1 s to 1/30,000 s S/ N (Signal/ Noise) Ratio dB: > 55 Zoom: 1 Compression Type: H.264, MJPEG |
|
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 17 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF |
| Physical Specifications |
Weight g: 6800 Dimensions mm: ø240 x 382 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: < 95 |
| Additional info |
Thermal Camera
Visible-light Camera
System Features
|
