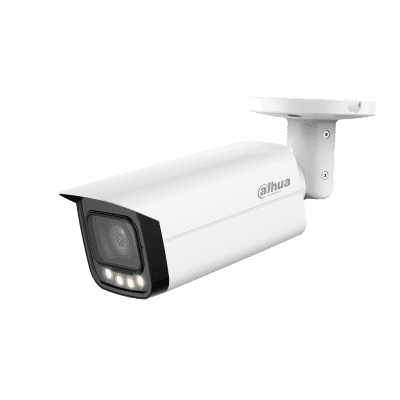

Dahua Technology DH-HACHFW1239TUP-Z-ALED-DP 2MP Full-color HDCVI Bullet Camera, PAL
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HACHFW1239TUP-Z-ALED-DP
- Colour Type: Colour
- Resolution TVL: 2MP
- Digital (DSP): 1
Additional info:
24/7 color imaging, Max. 30 fps@1080p Super Adapt, 130 dB true WDR, 3D NR Auto focus, 2.7 mm–13.5 mm motorized lens 60 m illumination distance Built-in mic CVI/CVBS/AHD/TVI switchable
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DH-HACHFW1239TUP-Z-ALED-DP |
|
Colour Type: Colour Resolution TVL: 2MP Digital (DSP): 1 Sensitivity lux: 0.001 Focal Length mm: 2.7 ~ 13.5 Mount Type: Pole Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/25 s–1/100000 s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 13.2W |
| Physical Specifications |
Dimension mm: 244 x 90 x 90 Weight g: 790 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
