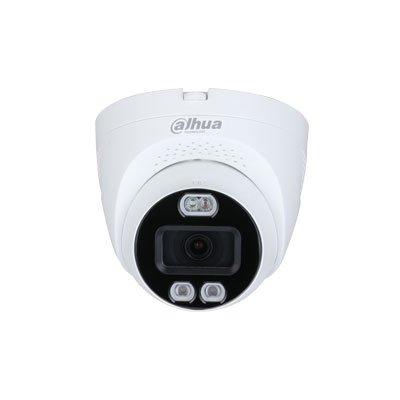

Dahua Technology DH-HAC-ME1800TQ-PV 4K fixed IR eyeball camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-ME1800TQ-PV
- Series: Active Deterrence Series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Max. 4K resolution, real-time video transmission Active deterrence with red blue light, siren and alarm out interface Quick-to-install eyeball save installation time 2.8 mm fixed lens (3.6 mm Optional) Max. IR length 60 m, Smart IR IP67, 12V±30% DC An ideal choice for applications which require intrusion protect and video verification, such as courtyards, offices, warehouses, stores
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DH-HAC-ME1800TQ-PV |
| Series | Active Deterrence Series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 4K HD: 1 Digital (DSP): 1 Specialist Types: Infrared Sensitivity lux: 0 ~ 0.02 Motion Activated: 1 Focal Length mm: 2.8 mm; 3.6 mm Mount Type: Wall, Pole Wide Dynamic Range: 1 Picture Elements HxV: 3840 x 2160 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25 s ~ 1/100000 s; NTSC: 1/30 s ~ 1/100000 s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL, NTSC Video Output: 1 BNC output, Support CVI/TVI/AHD/CVBS |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 8.5 W |
| Physical Specifications |
Dimension mm: 110 x 101 Weight g: 320 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
