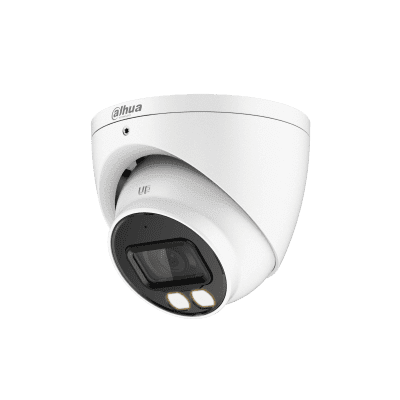

Dahua Technology DH-HAC-HDW1509TPLED 5MP Full-color HDCVI Eyeball Camera, PAL
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-HDW1509TPLED
- Series: Lite series
- Colour Type: Colour
- Resolution TVL: 5 MP
Additional info:
Max 25 fps@5MP (16:9 video output) 120 dB true WDR, 3D NR 24/7 color imaging 40 m illumination distance CVI/CVBS/AHD/TVI switchable Built-in mic (-A)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DH-HAC-HDW1509TPLED |
| Series | Lite series |
|
Colour Type: Colour Resolution TVL: 5 MP Digital (DSP): 1 Sensitivity lux: 0.001 Focal Length mm: 2.8 mm; 3.6 mm Mount Type: Wall, Pole Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/3 s–1/100,000 s S/ N (Signal/ Noise) Ratio dB: > 65 Signal Mode: PAL Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 6.4 W |
| Physical Specifications |
Dimension mm: φ106 x 94 Weight g: 480 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
