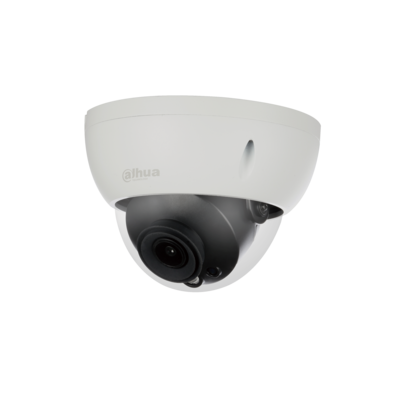

Dahua Technology DH-HAC-HDBW2402RP 3.6mm 4MP Starlight+ HDCVI IR Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HAC-HDBW2402RP 3.6mm
- Colour Type: Colour / Monochrome
- Resolution TVL: 4 MP
- Specialist Types: Infrared
Additional info:
Starlight+, 120dB true WDR, 3DNR Max. 30fps@4MP HD/SD output switchable Audio in interface 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | DH-HAC-HDBW2402RP 3.6mm |
|
Colour Type: Colour / Monochrome Resolution TVL: 4 MP Specialist Types: Infrared Sensitivity lux: 0.002Lux/F1.6, 30IRE, 0Lux IR on Focal Length mm: 3.6 mm Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: PAL: 1/25s~1/100,000s, NTSC: 1/30s~1/100,000s S/ N (Signal/ Noise) Ratio dB: > 65dB Signal Mode: PAL Video Output: 1-channel BNC high definition video output / CVBS video output (DIP switch) |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5.8W |
| Physical Specifications |
Dimension mm: Φ122 x 88.9 Weight g: 500 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67, IK10 |
| Additional info |
|
