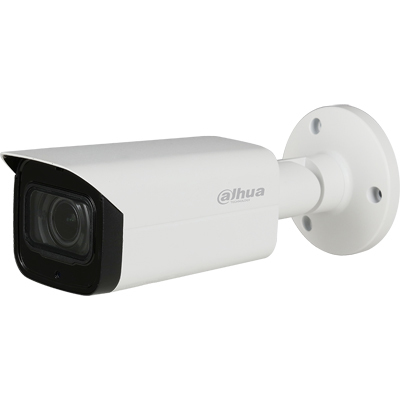

Dahua Technology A52AF6Z 5MP IR Vari-focal HDCVI Bullet
Technical Specification
Features:
- Make: Dahua Technology
- Model code: A52AF6Z
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 5MP
Additional info:
1/2.8-in. 5 MP Progressive-scan STARVIS™ CMOS Sensor 5 MP (2592 x 1944) at 20 fps Maximum Resolution 2.7 mm to 13.5 mm Motorized Vari-focal Lens Starlight Technology for Low-light Applications True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction Built-in Microphone HD or SD Output, Switchable Maximum IR Length 80 m (262 ft), Smart IR IP67 Ingress Protection Dual Power Input, 24 VAC or 12 VDC Five-year Warranty (for products sold through an authorized Dahua dealer)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | A52AF6Z |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 5MP Digital (DSP): 1 Sensitivity lux: 0 ~ 0.005 Focal Length mm: 2.7 ~ 13.5 Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/3 s to 1/100,000 s S/ N (Signal/ Noise) Ratio dB: > 65 |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 17.2 W |
| Physical Specifications |
Dimension mm: 244 x 90 x 90 Weight g: 810 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 90 |
| Additional info |
|
