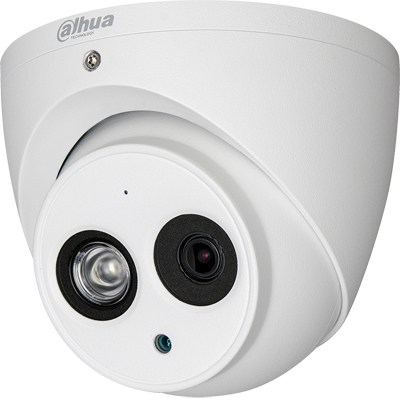

Dahua Technology A21CG02 2MP IR 2.8 mm HDCVI Eyeball
Technical Specification
Features:
- Make: Dahua Technology
- Model code: A21CG02
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 1080p
Additional info:
1/2.8-in. 2 MP Progressive-scan CMOS Sensor 1080p at 30 fps Maximum Resolution 2.8 mm Fixed Lens Multi-format Output (HDCVI, CVBS, AHD, and TVI) Starlight Technology for Low-light Applications HD and SD Output, Switchable Maximum IR Length 50 m (164 ft), Smart IR Built-in Microphone IP67 Ingress Protection Five-year Warranty (for products sold through an authorized Dahua dealer)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | A21CG02 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 1080p Digital (DSP): 1 Sensitivity lux: 0 ~ 0.005 Focal Length mm: 2.8 Mount Type: Pole, Corner, Wall, Ceiling Wide Dynamic Range: 1 Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/30 to 1/100,000 s S/ N (Signal/ Noise) Ratio dB: > 65 |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4.7 W |
| Physical Specifications |
Dimension mm: ø106 x 94 Weight g: 440 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 90 |
| Additional info |
|
