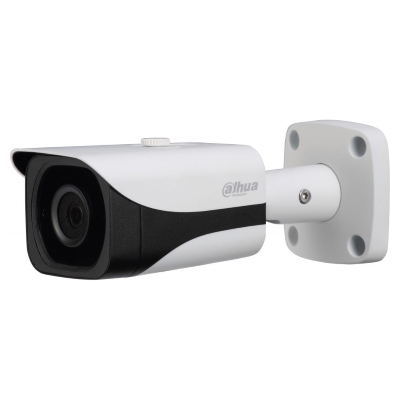

Dahua Technology A21BB03 2MP IR 3.6mm HDCVI mini bullet camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: A21BB03
- Series: Lite series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
Maximum 30 fps at 1080p Resolution HD and SD Switchable Output Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI 3.6 mm Fixed Lens Maximum IR Length 40 m (130 ft) with Smart IR
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | IP Cameras products |
| Model code | A21BB03 |
| Series | Lite series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 2MP Digital (DSP): 1 Specialist Types: Infrared Auto Iris: 1 Sensitivity lux: 0.01 Motion Activated: 1 Focal Length mm: 3.6 Mount Type: Pole Wide Dynamic Range: 1 Picture Elements HxV: 1920(H) x 1080(V) Back Light Compensation: 1 Auto Gain Control: 1 White Balance: 1 Electronic Shutter range: 1/30 - 1/100000s S/ N (Signal/ Noise) Ratio dB: > 65 Mini or Compact: Mini Video Output: BNC HDCVI High-definition Channel, BNC CVBS, AHD or TVI Channel |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 4.6 W |
| Physical Specifications |
Dimension mm: 180 x 70 x 70 Weight g: 350 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
