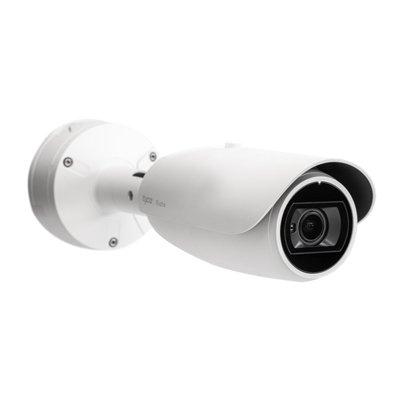

Cloudvue TCCF303B11 3MP Outdoor Bullet 3.2-10mm Varifocal

Technical Specification

Features:
  • Make: Cloudvue
  • Model code: TCCF303B11
  • Chip Inch Size: 1/2.8 inch
  • Colour Type: Colour / Monochrome
  • Resolution: 3 MP resolution
Additional info:

The powerful Illustra Flex Gen3 3MP Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex Gen3 3MP Bullet Camera.

Read more
Make Cloudvue
Manufacturer Cloudvue
Category IP Cameras products
Model code TCCF303B11
Chip Inch Size: 1/2.8 inch
Colour Type: Colour / Monochrome
Resolution: 3 MP resolution
Sensitivity Lux: 0.005 ~ 0.05
Focal Length mm: 3.2 ~ 10
Wide Dynamic Range: 1
Back Light Compensation: 1
Auto Gain Control: 1
White Balance: 1
Electronic Shutter Range: 1/4s ~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB: 50
Compression Type: MJPEG, H.264, H.264 IntelliZip, H.265 and H.265 IntelliZip
Electrical Specifications Voltage: 24 V AC / PoE
Power Consumption: 24 VAC: Max 14.0W, PoE: Max 12.95W
Network Properties Image Frame Rate: 20 fps / 60 fps
Interface: RJ-45(10/100BASE-T)
Network Protocols: TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
Physical Specifications Dimensions mm: 91 x 325
Environmental Specifications Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F)
Protection: IP66, IP67, IK10
Operating Humidity %: < 90
Additional info

The powerful Illustra Flex Gen3 3MP Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex Gen3 3MP Bullet Camera.
