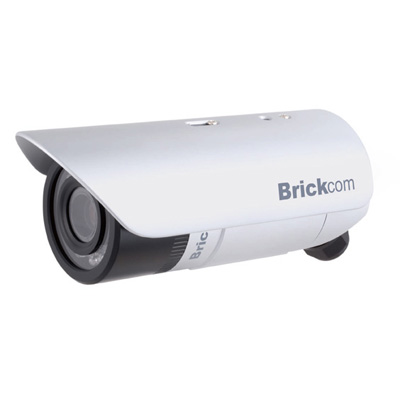

Brickcom WOB-040C bullet network camera with 3.3 ~ 12 mm focal length and WDR
Technical Specification
Features:
- Make: Brickcom
- Model code: WOB-040C
- Chip Inch Size: 1/4 inch
- Colour Type: Colour
- Specialist Type: Network
Additional info:
*HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP.Built in fan and heater.
Read more| Make | Brickcom |
|---|---|
| Manufacturer | Brickcom Corp. |
| Category | IP Cameras products |
| Model code | WOB-040C |
|
Chip Inch Size: 1/4 inch Colour Type: Colour Specialist Type: Network Sensitivity Lux: 0.0 Auto Iris: AI Focal Length mm: 3.3 ~ 12 Picture Elements HxV: 768 x 492 Auto Gain Control: AutoGainControl White Balance: WhiteBalance Compression Type: H.264, MPEG-4, M-JPEG |
|
| Electrical Specifications |
Voltage: 12 VDC, 24 VAC, PoE Power Consumption: 10 W |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10/100Mbps RJ-45 Network Protocols: TCP/ IP, UDP, ICMP,DHCP, NTP, DNS, DDNS, SMTP* |
| Physical Specifications | Dimensions mm: 70 x 166 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Protection: IP67 Operating Humidity %: 10 ~ 80 |
| Additional info |
*HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP. Built in fan and heater. |
