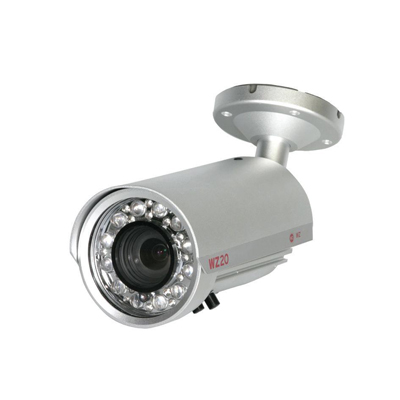

Bosch WZ20NXV550-0 integrated day/night high-resolution bullet camera
Technical Specification
Features:
- Make: Bosch
- Model code: WZ20NXV550-0
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 550
Additional info:
WZ20 brings together high resolution LXR imaging, the latest advances in mechanical filter lensing technology andruthlessly efficient dealer-friendly design.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | WZ20NXV550-0 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 550 Digital (DSP): Digital Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0.0 Direct Drive: DD Focal Length mm: 5 ~ 50 Picture Elements HxV: 811 x 508 Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 48 Signal Mode: NTSC Video Output: Composite video 1.0 Vp-p, 75 ohm |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 8 W |
| Physical Specifications |
Dimension mm: 98 x 292 Weight g: 1,700 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +55 Protection: IP66 Operating Humidity %: 0 ~ 95 |
| Additional info |
WZ20 brings together high resolution LXR imaging, the latest advances in mechanical filter lensing technology and
ruthlessly efficient dealer-friendly design. |
