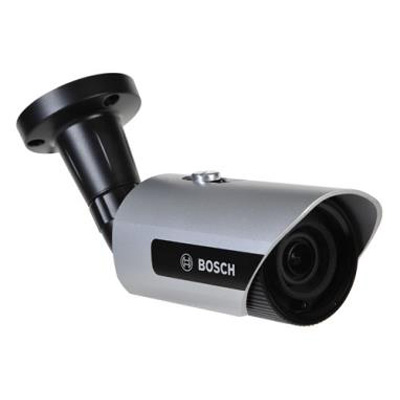

Bosch VTN-4075-V311 true day/night CCTV bullet camera
Technical Specification
Features:
- Make: Bosch
- Model code: VTN-4075-V311
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 720
Additional info:
Bosch VTN-4075-V311 features 960H 1/3 inch CCD sensor & provides a resolution of 720TVL. The water resistant (IP66 rated) and vandal resistant (IK08 rated) housing ensures reliable video surveillance in a variety of indoor and outdoor applications. The true day/night feature automatically switches from color to monochrome using a mechanical IR filter depending on the available light.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | VTN-4075-V311 |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 720 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.02 Motion Activated: MotionActivated Focal Length mm: 2.8 ~ 12 Mount Type: Bracket Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1020 x 596 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Electronic Shutter range: 1/50 ~ 1/10,000 S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal, Line Lock Signal Mode: PAL Video Output: Composite video 1 Vpp, 75 ohm |
|
| Electrical Specifications |
Voltage: 24 V AC / 12 V DC Power Consumption: 190 mA |
| Physical Specifications |
Dimension mm: 70 x 120 Weight g: 960 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) Protection: IP66, IK08 Operating Humidity %: 20 ~ 90 |
| Additional info | Bosch VTN-4075-V311 features 960H 1/3 inch CCD sensor & provides a resolution of 720TVL. The water resistant (IP66 rated) and vandal resistant (IK08 rated) housing ensures reliable video surveillance in a variety of indoor and outdoor applications. The true day/night feature automatically switches from color to monochrome using a mechanical IR filter depending on the available light. |
