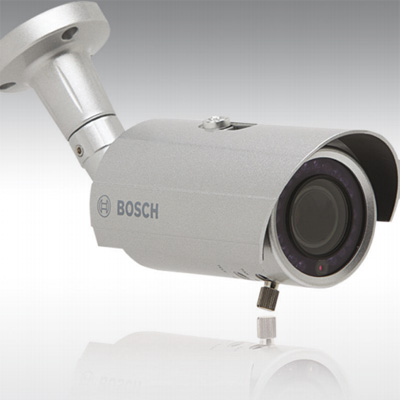

Bosch VTI-218V03-2 WZ18 integrated IR bullet camera with 540 TVL
Technical Specification
Features:
- Make: Bosch
- Model code: VTI-218V03-2
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 540
Additional info:
WZ18 uses a 1/3 in CCD image sensor which delivers 540 TVL images. The 18integrated infrared LEDs deliver 20 m (66 ft) of high performance night vision.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | VTI-218V03-2 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 540 Digital (DSP): Digital Specialist Types: Infrared Auto Iris: AI Sensitivity lux: 0 Focal Length mm: 2.8 ~ 12 Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 50 Signal Mode: NTSC Zoom: Zoom Video Output: 1Vpp composite video, 75 ohm |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 6.7 W |
| Physical Specifications |
Dimension mm: 76 x 130 Weight g: 850 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 Protection: IP66 |
| Additional info |
WZ18 uses a 1/3 in CCD image sensor which delivers 540 TVL images. The 18integrated infrared LEDs deliver 20 m (66 ft) of high performance night vision. |
