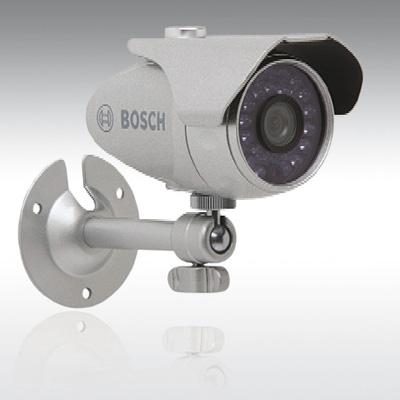

Bosch VTI-214F04-3 IR bullet camera with 1/3 inch chip
Technical Specification
Features:
- Make: Bosch
- Model code: VTI-214F04-3
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 380
Additional info:
WZ14 provides reliable day and night surveillance in a compact, water resistant design that integrates 30 infrared LEDs for 15 m (49 ft) of night vision.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | VTI-214F04-3 |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 380 Specialist Types: Infrared Sensitivity lux: 0.0 Focal Length mm: 4 Picture Elements HxV: 500 x 582 Gamma Correction: 0.45 Electronic Shutter range: 1/50 ~ 1/10,000 S/ N (Signal/ Noise) Ratio dB: 45 Signal Mode: PAL |
|
| Electrical Specifications | Voltage: 12 V DC |
| Physical Specifications |
Dimension mm: 65 x 67 x 112 Weight g: 390 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 Protection: IP67 |
| Additional info | WZ14 provides reliable day and night surveillance in a compact, water resistant design that integrates 30 infrared LEDs for 15 m (49 ft) of night vision. |
