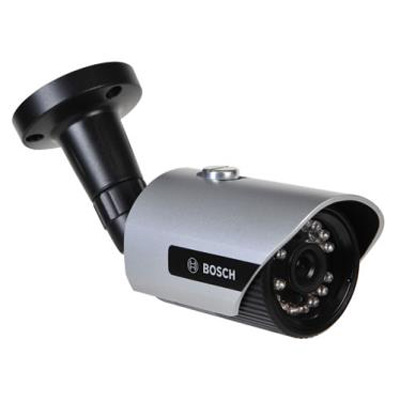

Bosch VTI-2075-F311 IR CCTV bullet camera
Technical Specification
Features:
- Make: Bosch
- Model code: VTI-2075-F311
- Chip Inch Size ": 1/3 inch
- Colour Type: True Day / Night
- Resolution TVL: 720
Additional info:
Bosch VTI-2075-F311 is an IR bullet camera which offers resolution in variable lighting conditions. It features 960H 1/3?inch CCD sensor & provides a resolution of 720TVL. The camera is available with a 3.6 mm fixed lens. The integrated infrared LEDs provide up to 15 m (50 ft) of night vision.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | VTI-2075-F311 |
|
Chip Inch Size ": 1/3 inch Colour Type: True Day / Night Resolution TVL: 720 Digital (DSP): Digital Specialist Types: Infrared Sensitivity lux: 0 Focal Length mm: 3.6 Mount Type: Bracket Wide Dynamic Range: wideDynamicRange Picture Elements HxV: 1020 x 596 (PAL), 1020 x 508 (NTSC) Electronic Shutter range: 1/50 ~ 1/10,000 (PAL), 1/60 ~ 1/10,000 (NTSC) S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal Signal Mode: NTSC/PAL Video Output: Composite video 1 Vpp, 75 ohm |
|
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 370 mA |
| Physical Specifications |
Dimension mm: 59 x 85 Weight g: 540 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) Protection: IP66, IK08 Operating Humidity %: 20 ~ 90 |
| Additional info | Bosch VTI-2075-F311 is an IR bullet camera which offers resolution in variable lighting conditions. It features 960H 1/3?inch CCD sensor & provides a resolution of 720TVL. The camera is available with a 3.6 mm fixed lens. The integrated infrared LEDs provide up to 15 m (50 ft) of night vision. |
