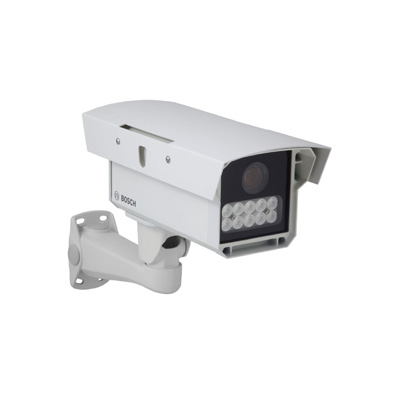

Bosch NER-L2R5-1 - DINION capture 5000 IP PAL license plate camera, 16.5 to 28.0 m range
Technical Specification
Features:
- Make: Bosch
- Model code: NER-L2R5-1
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution: 540 resolution
Additional info:
The DINION capture 5000 is a specialty camera designed to capture consistent, high-quality images of vehicle license plates. Available in IP and analog versions, it is ideal for monitoring parking lots, public areas, and for controlling vehicle access. The DINION capture 5000 overcomes the problems encountered when using conventional surveillance cameras in vehicle identification and automatic license plate recognition applications. The Night Capture Imaging System delivers a burst of infrared illumination and simultaneously filters out visible light to ensure clear license plate images in complete darkness while eliminating the negative effects of headlight glare.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | NER-L2R5-1 |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 540 resolution Digital (DSP): Digital Specialist Type: Infrared Motion Activated: MotionActivated Focal Length mm: 5 ~ 50 Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 768 x 494 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance Synchronisation: Iinternal Signal Mode: PAL Compression Type: H.264, M-JPEG, MPEG-4 |
|
| Electrical Specifications |
Voltage: 30 V DC Power Consumption: 22 W |
| Network Properties | Network Protocols: RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, |
| Physical Specifications |
Weight g: 4400 Dimensions mm: 340 x 154 x 139 |
| Environmental Specifications |
Protection: IP 67 Operating Temperature oC: -40 ~ +50 Operating Humidity %: 0 ~ 100 |
| Additional info | The DINION capture 5000 is a specialty camera designed to capture consistent, high-quality images of vehicle license plates. Available in IP and analog versions, it is ideal for monitoring parking lots, public areas, and for controlling vehicle access. The DINION capture 5000 overcomes the problems encountered when using conventional surveillance cameras in vehicle identification and automatic license plate recognition applications. The Night Capture Imaging System delivers a burst of infrared illumination and simultaneously filters out visible light to ensure clear license plate images in complete darkness while eliminating the negative effects of headlight glare. |
