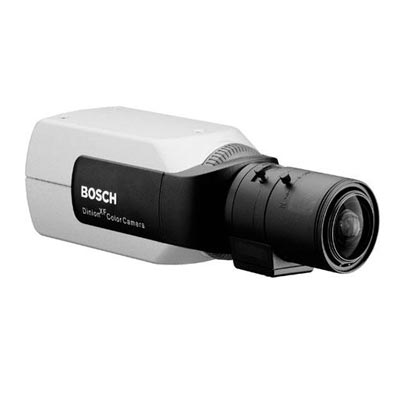

Bosch LTC0485/11 DinonXF colour camera with Bilinx communication
Technical Specification
Features:
- Make: Bosch
- Model code: LTC0485/11
- Series: Dinion XF Series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
Additional info:
The camera supports 3 independent operating modes (profiles), which are fully programmable. 9dB extra sensitivity is achieved by summing the signal from the pixels normally used to produce the colour picture and produce a monochrome image with improved S/N ratio.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | LTC0485/11 |
| Series | Dinion XF Series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 540 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.01 Direct Drive: DD Lens Mount: C/CS mount Motion Activated: MotionActivated Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Electronic Shutter range: 1/50 ~ 1/500,000 S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal, Line-lock Signal Mode: PAL Video Output: 1 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 11 ~ 39 V DC Power Consumption: 4 W |
| Physical Specifications |
Dimension mm: 59 x 67 x 122 Weight g: 450 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +50 Operating Humidity %: 20 ~ 93 |
| Additional info | The camera supports 3 independent operating modes (profiles), which are fully programmable. 9dB extra sensitivity is achieved by summing the signal from the pixels normally used to produce the colour picture and produce a monochrome image with improved S/N ratio. |
