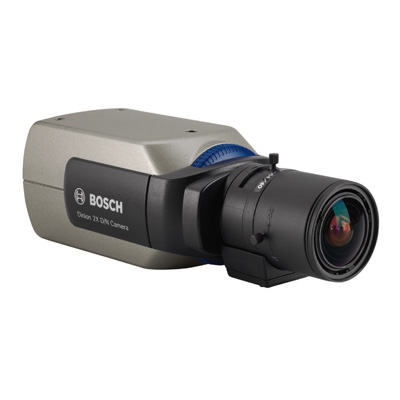

Bosch LTC 0498 Dinion2X day/night camera with 540 TVL
Technical Specification
Features:
- Make: Bosch
- Model code: LTC 0498
- Series: Dinion XF Series
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
LTC 0498 Dinion2X Day/Night camera is a highperformance, smart, surveillance camera. It uses a 1/3-inch, wide dynamic range CCD sensor and incorporates advanced (20-bit) digital signal processing for outstanding picture performance.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | LTC 0498 |
| Series | Dinion XF Series |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour / Monochrome Resolution TVL: 540 Digital (DSP): Digital Auto Iris: AI Sensitivity lux: 0.0038 Direct Drive: DD Lens Mount: CS mount Picture Elements HxV: 752 x 582 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl Electronic Shutter range: 1/50 ~ 1/500,000 S/ N (Signal/ Noise) Ratio dB: > 50 Synchronisation: Internal/Line-lock Signal Mode: PAL/NTSC Video Output: 1.0 Vp-p, 75 Ohms |
|
| Electrical Specifications |
Voltage: 12 ~ 28 V AC Power Consumption: 4 W |
| Physical Specifications |
Dimension mm: 58 x 66 x 122 Weight g: 450 |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +55 Operating Humidity %: 20 ~ 93 |
| Additional info |
LTC 0498 Dinion2X Day/Night camera is a highperformance, smart, surveillance camera. It uses a 1/3-inch, wide dynamic range CCD sensor and incorporates advanced (20-bit) digital signal processing for outstanding picture performance. |
