Bosch EX52C7V0409-N explosion protected camera
Technical Specification
Features:
- Make: Bosch
- Model code: EX52C7V0409-N
- Chip Inch Size ": 1/3 inch
- Colour Type: Colour
- Resolution TVL: 500
Additional info:

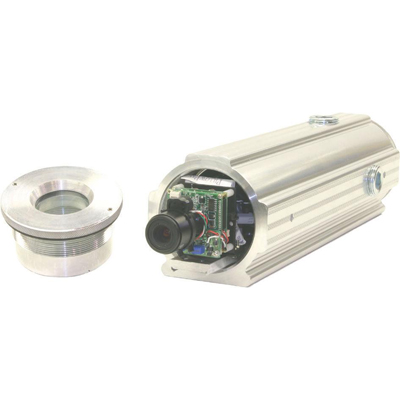

EX52 is a 30 cm (12 in) explosion protected camera for effective surveillance at high risk environments. Designed for hazardous industrial locations, including the entire range of OSHA (UL).
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | EX52C7V0409-N |
|
Chip Inch Size ": 1/3 inch Colour Type: Colour Resolution TVL: 500 Sensitivity lux: 2.7 @ F1.4 Focal Length mm: 4 ~ 9 Picture Elements HxV: 768 x 494 Auto Gain Control: AutoGainControl Gamma Correction: 0.45 Electronic Shutter range: 1/60 ~ 1/100,000 S/ N (Signal/ Noise) Ratio dB: 48 Signal Mode: NTSC |
|
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 5 W |
| Physical Specifications |
Dimension mm: 86 x 305 Weight g: 4,500 |
| Environmental Specifications | Operating Temperature oC: -50 ~ +50 |
| Additional info | EX52 is a 30 cm (12 in) explosion protected camera for effective surveillance at high risk environments. Designed for hazardous industrial locations, including the entire range of OSHA (UL). |
