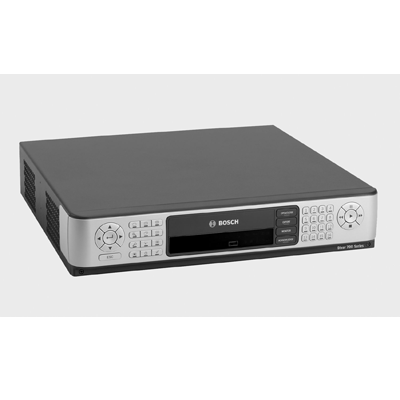

Bosch DNR-754-16A200 digital video recorder with high performance H.264
Technical Specification
Features:
- Make: Bosch
- Model code: DNR-754-16A200
- Channels: 16 channels
- Recording Mode: Real Time / Timelapse recording
- Hybrid IP inputs: 16
Additional info:
The Bosch 700 Series Hybrid and Network Recorders offer top-of-the-line performance and adaptability. Equipped with four front-replaceable hard drives and extensive integration features, the 700 Series is ideal for medium to large-scale systems. 700 Series' superior image quality and compression gets the most out of CCTV images. Available in both IP-only and hybrid models, the 700 Series can handle even the most challenging CCTV applications without excessive demands from installers and operators.
Read more| Make | Bosch |
|---|---|
| Manufacturer | Bosch Security Systems |
| Category | IP Cameras products |
| Model code | DNR-754-16A200 |
|
Channels: 16 channels Recording Mode: Real Time / Timelapse recording Hybrid IP inputs: 16 Inbuilt Multiplexer: InbuiltMultiplexer Alarm I/O: 16 in, 5 out Storage Capacity GB: 2048 GB storage Image per second (IPS): 25 (PAL) / 30 (NTSC) fps storage rate Compression Type: H.264 Resolution: 704 x 576 resolution Signal Mode: PAL, NTSC Recording System: HDD, DVD Type of Multiplexer Functions: Recording, Playback, Viewing Network Type: 10/100/1000 BaseT |
|
| Physical Specifications |
Dimensions mm: 446 x 443 x 88 Weight kg: 11 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 250 W |
| Environmental Specifications |
Operating Temp oC: 5 ~ 45 Operating Humidity %: 0 ~ 93 |
| Additional info | The Bosch 700 Series Hybrid and Network Recorders offer top-of-the-line performance and adaptability. Equipped with four front-replaceable hard drives and extensive integration features, the 700 Series is ideal for medium to large-scale systems. 700 Series' superior image quality and compression gets the most out of CCTV images. Available in both IP-only and hybrid models, the 700 Series can handle even the most challenging CCTV applications without excessive demands from installers and operators. |
