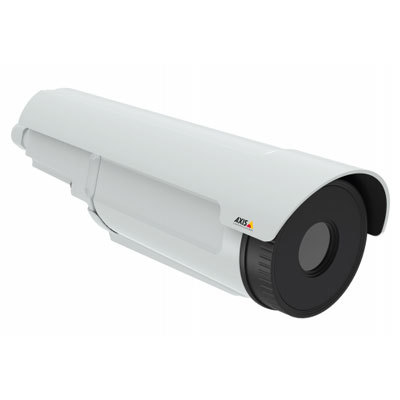

Axis Communications AXIS Q1941-E PT Mount 19 mm outdoor thermal IP bullet camera
Technical Specification
Features:
- Make: Axis Communications
- Model code: AXIS Q1941-E PT Mount 19 mm
- Series: Q19 Series
- Resolution: 384 x 288 resolution
- Digital (DSP): 1
Additional info:
Offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility Powerful performance for video analytics Electronic Image Stabilisation Axis Zipstream Withstands harsh weather conditions and has a built-in heater for the window Offers Power over Ethernet and has a microSD card slot
Read more| Make | Axis Communications |
|---|---|
| Manufacturer | Axis Communications |
| Category | IP Cameras products |
| Model code | AXIS Q1941-E PT Mount 19 mm |
| Series | Q19 Series |
|
Resolution: 384 x 288 resolution Digital (DSP): 1 Specialist Type: Thermal Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 Focal Length mm: 19 Picture Elements HxV: 384 x 288 Compression Type: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
|
| Electrical Specifications |
Voltage: 8 ~ 28 V DC / 20 ~ 24 V AC / PoE Power Consumption: 4.8 W / 6.6 W |
| Network Properties |
Image Frame Rate: 8.3 fps / 30 fps Interface: RJ45 10BASE-T/100BASE-TX PoE Network Protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Physical Specifications |
Weight g: 1800 Dimensions mm: 309 x 105 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F) Protection: IP66 Operating Humidity %: 10 ~ 100 |
| Additional info |
|
