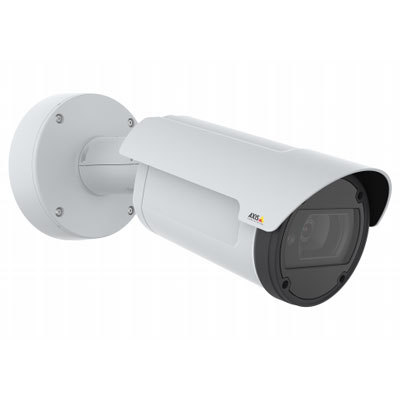

Axis Communications AXIS Q1798-LE 4K IR IP bullet camera
Technical Specification
Features:
- Make: Axis Communications
- Model code: AXIS Q1798-LE
- Series: Q17 Series
- Colour Type: True Day / Night
- Resolution: 4K resolution
Additional info:
Features a powerful, ultra-high light-sensitive 4/3” image sensor that captures superior video and excellent details in resolutions up to 10 megapixels Thanks to Axis Lightfinder 2.0, it delivers true colors in almost complete darkness Including a Canon lens with focal length of 12-48 mm and horizontal field of view of 90°, it’s ideal for wide, open areas such as airports, harbors or sports stadiums Offers built-in analytics for proactive surveillance and includes audio in, Axis OptimizedIR, shock detection, auto-rotation as well as enhanced security functionality Axis Zipstream supporting H.264/H.265 provides exceptional savings on bandwidth and storage requirements.
Read more| Make | Axis Communications |
|---|---|
| Manufacturer | Axis Communications |
| Category | IP Cameras products |
| Model code | AXIS Q1798-LE |
| Series | Q17 Series |
|
Colour Type: True Day / Night Resolution: 4K resolution Digital (DSP): 1 Specialist Type: Infrared Auto Iris: 1 Direct Drive: 1 Motion Activated: 1 Wide Dynamic Range: 1 Picture Elements HxV: 3840 x 2160 White Balance: 1 Electronic Shutter Range: 1/45500 ~ 2 s Zoom: 1 Compression Type: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
| Electrical Specifications |
Voltage: 20 ~ 28 V DC / 20 ~ 24 V AC / PoE Power Consumption: 12.9 W / 13.3 W |
| Network Properties |
Image Frame Rate: 25 fps / 30 fps Interface: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T Network Protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Physical Specifications |
Dimensions mm: 360 x 147 Weight g: 2550 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F) Protection: IP66, IP67, IK10 Operating Humidity %: 10 ~ 100 |
| Additional info |
|
