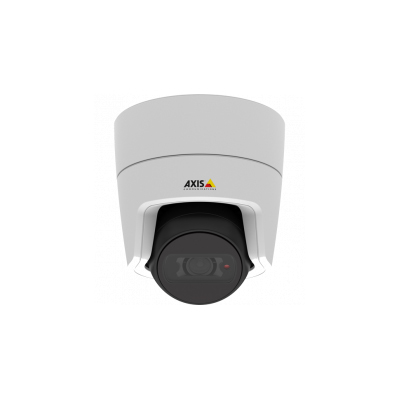

Axis Communications AXIS M3106-LVE Mk II 4 MP Network Camera
Technical Specification
Features:
- Make: Axis Communications
- Model code: AXIS M3106-LVE Mk II
- Series: M31 Series
- Chip Inch Size: 1/3 inch
- Resolution: 4MP resolution
Additional info:
Built-in IR illumination Quad HD/4 MP video Wide Dynamic Range (WDR) Axis Zipstream technology Smart design for easy, flexible installation
Read more| Make | Axis Communications |
|---|---|
| Manufacturer | Axis Communications |
| Category | IP Cameras products |
| Model code | AXIS M3106-LVE Mk II |
| Series | M31 Series |
|
Chip Inch Size: 1/3 inch Resolution: 4MP resolution Digital (DSP): 1 Specialist Type: Network Sensitivity Lux: 0 ~ 0.3 Auto Iris: 1 Direct Drive: 1 Wide Dynamic Range: 1 White Balance: 1 Electronic Shutter Range: 1/31500 s ~ 1/5 s Compression Type: H.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
| Electrical Specifications |
Voltage: PoE Power Consumption: 5.1 W |
| Network Properties |
Image Frame Rate: 25 ~ 30 fps Interface: RJ45 10BASE-T/100BASE-TX PoE Network Protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Physical Specifications |
Dimensions mm: 94 x 101 Weight g: 370 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +50 C (-22 ~ +122 F) Protection: IP66, IK08 |
| Additional info |
|
| Download PDF version | |
