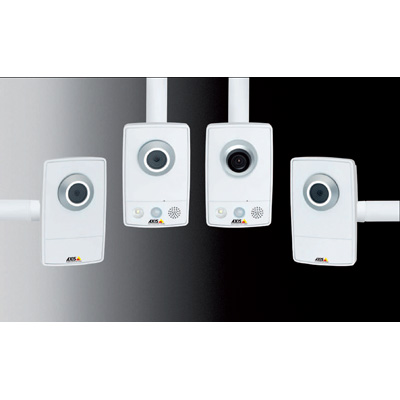

Axis Communication presents its AXIS M1054 network camera
Product Profile
Key features:
- HDTV quality
- Multiple H.264 streams
- Power over Ethernet
- PIR sensor and illumination LED
- Microphone and speaker
- I/O port
HDTV-quality for professional indoor surveillance
AXIS M1054 Network Camera uses progressive scan technology providing full frame-rate video in resolutions up to 1 megapixel including HDTV 720p. Multiple H.264 and Motion JPEG streams can be provided simultaneously individually optimised for different quality needs and bandwidth constraints.
Intruder alarm capabilities
The AXIS M1054 features an integrated PIR sensor for detecting movement even in the dark, and a white LED for illuminating the scene at an event. It additionally supports I/O ports for connecting external devices.
Functional and smart design
Designed for easy and flexible installation, AXIS M1054 can be powered either over Ethernet or by power supply. AXIS M1054 is ideal for applications in boutiques, restaurants, hotels and residences.
Technical Specification
Make | Axis Communications |
---|---|
Manufacturer | Axis Communications |
Category | IP Cameras products |
Model code | AXIS M1054 |
Resolution: 1280 x 800 resolution Sensitivity Lux: 0.0 Motion Activated: 1 Focal Length mm: 2.9 Back Light Compensation: 1 White Balance: 1 Electronic Shutter Range: 1/24,500 ~ 1/6 Signal Mode: PAL/NTSC Mini or Compact: 1 Compression Type: H.264, M-JPEG, MPEG-4 |
|
Electrical Specifications |
Voltage: PoE Power Consumption: 6.49 W |
Network Properties |
Image Frame Rate: 30 fps Control: PTZ Interface: RJ-45 10BASE-T/100BASE-TX Network Protocols: IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP |
Physical Specifications | Weight g: 160 |
Environmental Specifications |
Operating Temperature oC: 0 ~ 40 Operating Humidity %: 20 ~ 80 |
Additional info |
* SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS. |
