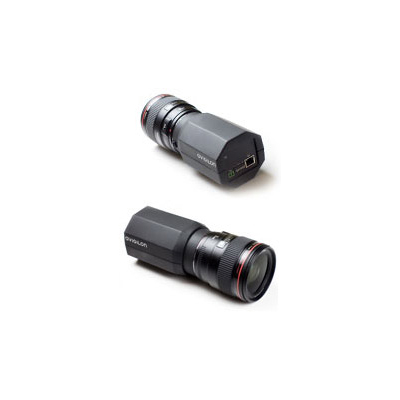

Avigilon 8.0MP-HD-PRO-C with high sensitivity, wide dynamic range
Technical Specification
- Make: Avigilon
- Model code: 8.0MP-HD-PRO-C
- Colour Type: Colour
- Specialist Type: Megapixel
- Sensitivity Lux: 0.1
The Avigilon 8.0 megapixel JPEG2000 color HD Pro camera is a high sensitivity, wide dynamic range, progressive scan CCD camera designed for the most demanding surveillance applications. It transmits images over 100BASE-TX using advanced JPEG2000 progressive compression technology to achieve the lowest network bandwidth and most efficient image storage in the industry while maintaining unsurpassed image quality. The camera's advanced image acquisition system automatically adjusts the exposure time and the iris to ensure all available evidence is captured throughout the full range of day and nighttime scenes. The camera has an EF lens mount that is compatible with a wide selection of Canon® lenses.
Read more| Make | Avigilon |
|---|---|
| Manufacturer | Avigilon Corporation |
| Category | IP Cameras products |
| Model code | 8.0MP-HD-PRO-C |
|
Colour Type: Colour Specialist Type: Megapixel Sensitivity Lux: 0.1 Auto Iris: AI Direct Drive: DD Wide Dynamic Range: WideDynamicRange Picture Elements HxV: 3296 x 2472 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance Electronic Shutter Range: 2 ~ 1/60,000 S/ N (Signal/ Noise) Ratio dB: 64 Compression Type: JPEG2000 |
|
| Electrical Specifications |
Voltage: 12 ~ 24 V DC Power Consumption: 9 W |
| Network Properties |
Interface: RS-485 / 100BASE-TX Network Protocols: UDP, TCP, SOAP, DHCP, Zeroconf |
| Physical Specifications |
Dimensions mm: 120 x 79 x 74 Weight g: 1,150 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 20 ~ 80 |
| Additional info |
The Avigilon 8.0 megapixel JPEG2000 color HD Pro camera is a high sensitivity, wide dynamic range, progressive scan CCD camera designed for the most demanding surveillance applications. It transmits images over 100BASE-TX using advanced JPEG2000 progressive compression technology to achieve the lowest network bandwidth and most efficient image storage in the industry while maintaining unsurpassed image quality. The camera's advanced image acquisition system automatically adjusts the exposure time and the iris to ensure all available evidence is captured throughout the full range of day and nighttime scenes. The camera has an EF lens mount that is compatible with a wide selection of Canon® lenses. |
