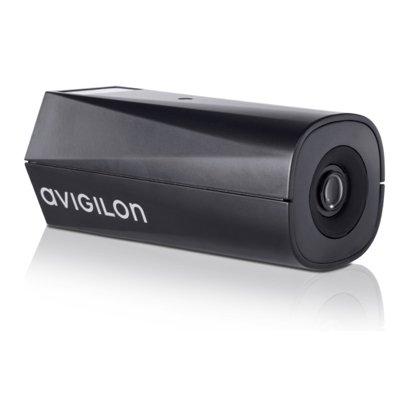

Avigilon 2.0C-H4A-B3(-B) H4 HD Camera with Self-Learning Analytics
Technical Specification
- Make: Avigilon
- Model code: 2.0C-H4A-B3(-B)
- Chip Inch Size: 1/2.8 inch
- Colour Type: Colour / Monochrome
- Resolution: 2 MP resolution
Patented Advanced Video Pattern Detection and Teach by Example Technology Self-learning video analytics Patented High Definition Stream Management (HDSM) Technology Available with 3-9 mm F1.3, 4.3-8 mm F1.8, 4.7-84.6 mm F1.6, or 9-22 mm F1.6 P-Iris lens with remote focus and zoom Wifi camera configuration support Avigilon LightCatcher technology provides exceptional image quality in low light environments (1-5 MP models) Triple Exposure Ultra Wide Dynamic Range (1-3 MP models) ONVIF compliance with version 1.02, 2.00, Profile S, Profile T and Profile G Avigilon HDSM SmartCodec technology for reduce bandwidth and storage requirements Idle Scene Mode lowers the bandwidth and storage usage if there are no motion events detected in the scene Full Feature or High Framerate camera operating modes (4K Ultra HD model) RS-485 interface
Read more| Make | Avigilon |
|---|---|
| Manufacturer | Avigilon Corporation |
| Category | IP Cameras products |
| Model code | 2.0C-H4A-B3(-B) |
|
Chip Inch Size: 1/2.8 inch Colour Type: Colour / Monochrome Resolution: 2 MP resolution Auto Iris: 1 Motion Activated: 1 Focal Length mm: 9 ~ 22 Wide Dynamic Range: 1 Back Light Compensation: 1 White Balance: 1 Electronic Shutter Range: 1/6 ~ 1/8000 sec Signal Mode: PAL, NTSC Zoom: 1 Compression Type: H.264 (MPEG-4 Part 10/AVC), Motion JPEG, HDSM SmartCodec Technology |
|
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 8 W |
| Network Properties |
Image Frame Rate: 30 fps Network Protocols: IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP |
| Physical Specifications |
Dimensions mm: 167 x 76 x 67 Weight g: 570 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ +140 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
