Arecont Vision MicroBullet IP cameras now shipping

Product Profile

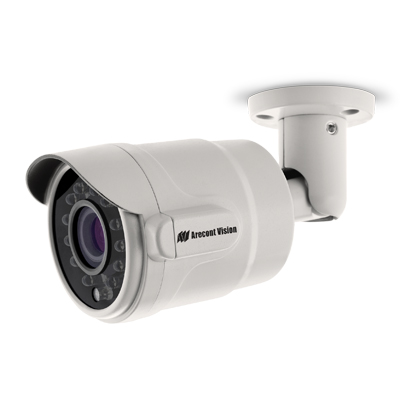

The MicroBullet® multi-megapixel camera series delivers 1080p or 3-megapixel resolutions in an extremely compact design. These true day/night cameras are available with a 2.8-8mm motorised lens, day/night mechanical IR cut filter, and integrated IR LEDs. MicroBullet is ideal for applications with normal to challenging lighting conditions regardless of the time of day.

Saving time and money with professional surveillance

MicroBullet megapixel IP cameras deliver professional surveillance, with ease of installation and set-up for a wide variety of requirements. The remote focus and zoom motorised lens allows users to simply click “Short-range. Focus” or “Full-range Focus”, saving installers time and end users money. For applications with strong backlighting, reflections from wet flooring or puddles, or contrast due to fog, mist, or glare, wide dynamic range 1080p and 3MP models are available. MicroBullet features CorridorView™ for better coverage of hallways and corridors, and SNAPstream™ (Smart Noise Adaptation and Processing) to reduce bandwidth without impacting image quality.

MicroBullet megapixel IP additional features

MicroBullet megapixel IP cameras are IP66 rated for both indoor and outdoor applications. All models feature an impact resistant cast-aluminium housing capable of withstanding the equivalent of 55 kg (120 lbs) of force.

The MicroBullet is ONVIF (Open Network Video Interface Forum) Series S and PSIA (Physical Security Interoperability Alliance) compliant, providing interoperability between network video products regardless of manufacturer.

Read more

Technical Specification

Make AV Costar
Manufacturer AV Costar (Arecont Vision)
Category IP Cameras products
Model code AV2325DNIR
Series MicroBullet Series
Chip Inch Size: 1/3 inch
Colour Type: True Day / Night
Resolution: 1080p (2.07MP) resolution
Digital (DSP): Digital
Specialist Type: Megapixel
Sensitivity Lux: 0.02 ~ 0.2
Auto Iris: AI
Direct Drive: DD
Motion Activated: MotionActivated
Focal Length mm: 2.8 ~ 8
Mount Type: Wall
Wide Dynamic Range: WideDynamicRange
Picture Elements HxV: 1920 x 1080
Back Light Compensation: BackLightCompensation
White Balance: WhiteBalance
Electronic Shutter Range: 1ms ~ 500ms
Mini or Compact: MiniorCompact
Zoom: Zoom
Compression Type: H.264 (MPEG-4, Part 10)/Motion JPEG
Electrical Specifications Voltage: PoE
Network Properties Image Frame Rate: 30 fps
Interface: 100Base-T Ethernet
Network Protocols: RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6, 802.1x
Physical Specifications Weight g: 460
Dimensions mm: 72 x 86 x 173
Environmental Specifications Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F)
Protection: IP66, IK10
Operating Humidity %: 0 ~ 90
Additional info
  • SNAPstream™ capability to reduce bandwidth without impacting image quality
  • True day/night functionality with mechanical IR cut filter
  • CorridorView™ allows 90° image rotation for better coverage in hallways and corridors
  • Binning Mode
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting and Forensic Zooming
  • Remote Focus/Zoom 2.8–8mm motorised lens
  • Integrated IR LEDs
  • Network protocols include 802.1x, IPv6, QoS, DHCP and more
  • All-in-one H.264 Total Power Over Ethernet (PoE) Solution
