Arecont Vision performance enhanced MegaVideo® G5 megapixel cameras
Product Profile
Arecont Vision® has enhanced MegaVideo® G5 with on-board SDMC card storage up to 32GB, and with CorridorView™ which allows the camera image to be rotated 90 degrees for increased coverage of hallways and corridors. MegaVideo® G5 cameras also feature the ability to scale images to different resolutions to better meet system bandwidth and storage requirements.
Available in single sensor configurations in 1.2MP, 1080p, 3MP, 5MP, and 10MP resolutions, optional remote focus/zoom p-iris lenses have also been added for use with MegaVideo® G5 Megapixel Cameras.
Additional feature highlights of the MegaVideo® G5 camera lineup include a dual sensor 3MP WDR and 1.2MP B/W Day/Night camera for superior performance in the most difficult lighting conditions.
Technical Specification
| Make | AV Costar |
|---|---|
| Manufacturer | AV Costar (Arecont Vision) |
| Category | IP Cameras products |
| Model code | AV1215PM-S |
| Series | MegaVideo® G5 Series |
|
Chip Inch Size: 1/3 inch Colour Type: True Day / Night Resolution: 1.2 MP resolution Digital (DSP): Digital Specialist Type: Megapixel Sensitivity Lux: 0.002 Lens Mount: C/CS mount Motion Activated: MotionActivated Picture Elements HxV: 1280 x 960 Back Light Compensation: BackLightCompensation White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: 54 Mini or Compact: MiniorCompact Zoom: Zoom Compression Type: H.264 (MPEG-4, Part 10)/Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 ~ 48 V DC, 24 V AC Power Consumption: 6.2 W |
| Network Properties |
Image Frame Rate: 37 fps Inclusion DVR/ Web Server: DVR Control: ePTZ Interface: 100Base-T Ethernet Network Protocols: RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP |
| Physical Specifications |
Weight g: 272 Dimensions mm: 76 x 32 x 64 |
| Environmental Specifications |
Operating Temperature oC: -5 ~ +50 C (23 ~ 122 F) Operating Humidity %: 0 ~ 90 |
| Additional info |

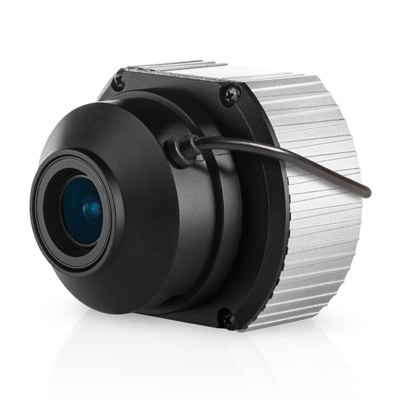

Arecont Vision AV1215PM-S is an indoor 1.2MP true day/night compact box IP camera. It features privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, and forensic zooming. It also features STELLAR (Spatio Temporal Low Light Architecture) thet reduces motion blur, noise and storage requirements, while enhancing contrast and allowing colour imaging in near complete darknes. It is ONVIF Profle S and PSIA compliant. |
