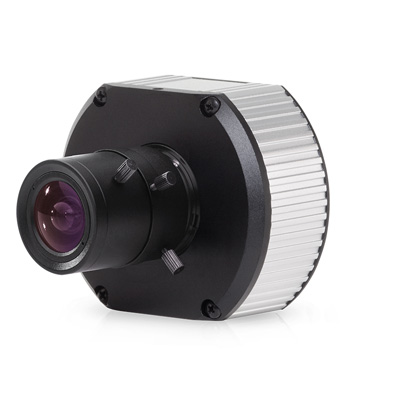

Arecont Vision AV1115DNv1 1.3MP IP camera
Technical Specification
Features:
- Make: AV Costar
- Model code: AV1115DNv1
- Series: MegaVideo® Compact Series
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
Additional info:
AV1115DNv1 is a 1.3 Megapixel, 42 fps, H.264/MJPEG Day/Night camera featuring 1280x1024, COMPACT, 12VDC/24VAC/PoE.
Read more| Make | AV Costar |
|---|---|
| Manufacturer | AV Costar (Arecont Vision) |
| Category | IP Cameras products |
| Model code | AV1115DNv1 |
| Series | MegaVideo® Compact Series |
|
Chip Inch Size: 1/3 inch Colour Type: Colour / Monochrome Resolution: 1.3 MP resolution Digital (DSP): Digital Specialist Type: Megapixel Sensitivity Lux: 0 Lens Mount: C/CS mount Motion Activated: MotionActivated Picture Elements HxV: 1280 x 1024 Back Light Compensation: BackLightCompensation Auto Gain Control: AutoGainControl White Balance: WhiteBalance S/ N (Signal/ Noise) Ratio dB: 45 Mini or Compact: MiniorCompact Zoom: Zoom Compression Type: H.264 (MPEG-4, Part 10)/Motion JPEG |
|
| Electrical Specifications |
Voltage: 12 ~ 48 V DC Power Consumption: 5.1 |
| Network Properties |
Image Frame Rate: 42 fps Interface: 100Base-T Network Protocols: TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP |
| Physical Specifications |
Dimensions mm: 76 x 63.5 x 31.7 Weight g: 164 |
| Environmental Specifications |
Operating Temperature oC: -5 ~ +50 C (-23 ~ 122 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
AV1115DNv1 is a 1.3 Megapixel, 42 fps, H.264/MJPEG Day/Night camera featuring 1280x1024, COMPACT, 12VDC/24VAC/PoE. |
